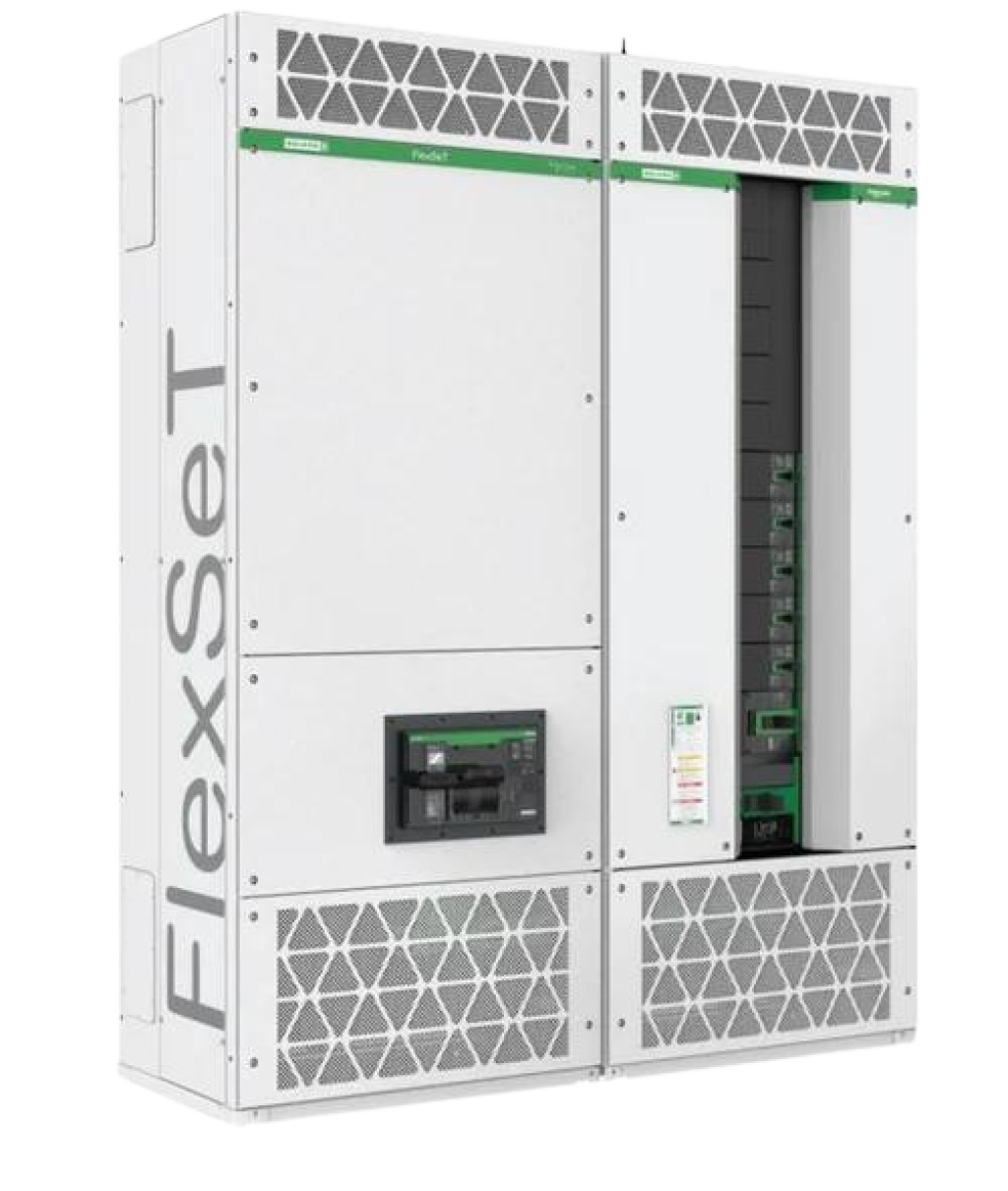

FlexSet Modular Switchboard

Faster Fulfillment
Simplified Install & Service

Cover with Captive Screws

“Captive” screws throughout the covers aid installation and save time. Captive features also prevents screws from being lost or left inside potentially energized equipment.

QR Code for Digital Twin

Access your digital twin with the QR code on the nameplate for lifecycle management including drawings, test reports, and installation manuals.

Hook & Fix Pre-Assembly Kit

Pre-assembled kits with hook and fix installation guides maximize assembly and enhance safety. Assists with installation by ensuring alignment of panels and compartments.

Through Bus Section for Splicing

Field installable bus bridge makes connnecting sections a breeze with our patented I-Line™ bus joint and Visi-Tite connections. Reduces exposure to bus with enclosed design.

4 Bar I-Line™ Stack & PoN

4 bar I-Line™ distribution stack allows for use of PoN (Plug-on Neutral). PoN delivers a clean installation and easy modification by simplifying wiring for load side neutral connections. One PoN can be used for multiple load connections.

Visual Torque Indication

Visi-Tite™ bolts ensure proper torque validation and improves reliability. Red flag break indicating correct torque value.

Swingable Main: Easy Access

Swing Out Main provides unprecedented ease of access for wiring during installation. Reduces time by providing unobstructed access to terminal points.

Instrument Compartment

Simplified wiring harness makes plug-n-play metering and monitoring accessories easy to install and add. Swingable compartment improves access to wiring for installation.
